Friday, March 6, 2015

Hallway

I didn't exactly stick to my Hallway plan, but I am still quite satisfied with the way it is turning out. Shortly after:

Adding the backsplash (Kitchen)
Installing in ceiling speakers (Family Room & Kitchen & Dining Room)
Painting the ceiling (Family Room & Kitchen)
Adding crown molding (Family Room & Kitchen)

... I started on installing crown molding in the Hallway. This space was already painted when I built up the wainscoting, so thankfully there wasn't any painting there to do first. As for the crown pattern, I decided to keep it the same as was done in our Sitting Room, where I had built up the coffered ceiling.

This build up consists of 4 pieces...

3/4" polyurethane cove
4" foam core cove
5" MDF plank
2" foam core cove

Unknown at 9:13 AM No comments: Read More

Monday, March 2, 2015

Crown & Surround

Not shortly after we (mostly) finished the backsplash, our order of crown molding showed up. But before I talk about that, let me first step back and talk about whole home audio.

We had rejected the idea & cost of our Low-Level Voltage installation consultation. If we had gone the route of requesting them to install things like speakers, cabling, etc it would have jacked up the price of our home tremendously. It wasn't until I visited a friend's home that did have in-ceiling speakers installed that I started to see how nice that feature really is. I got envious ;)

How does one install in-ceiling speakers after the fact? The answer is... crown!

Much like I had done in the Sitting Room, where I was able to run wire from one place to another to wire-up recessed LED lights, I was able to use the same technique to run 14 gauge wire from the Dining Room, the Kitchen, and the Family Room to the basement, then hide it all using crown molding.

In total, I installed 8 ceiling speakers across 3 zones. Four speakers in the main zone (Family Room), two speakers in second zone (Kitchen), and two speakers in the third zone (Dining Room). All of these wires travel down the outside corner of the bulkhead to a hole I punched in the wall near the fireplace.

Wiring from the Dining Room was a challenge. I was able to fish the wires over the HVAC inside the bulkhead to come out into the Kitchen.

The fireplace is just to the right and down. To the left is my office.

We painted the ceilings a light gray to compliment the dark gray walls.

~~Unfortunately, I forgot to take pics of the crown. I will upload those later.~~

Updated: photo at the top.

A note about home audio... generally I see most home audio controlled zones using a remote, or IR transmitters and receivers. I can't say this is a favorable option, especially since many audio receivers are now network ready. Rather than keep track of a remote you rarely use, it is better to just download an app to your android, or iOS and control your audio that way. Between tablets and phones, any of us in our household can queue up music, and specify where they want to listen to it.

Enjoy!

Unknown at 6:54 AM No comments: Read More

Backsplash

Previously I talked about how I was able to raise the cabinets. This was a double benefit:

More counter top space
Not perfectly fits 1 full sheet of tile

Having a little cabin fever with the recent snow, we decided to get out to lowes and look at grout colors. We ended up with two grout colors, anthracite (black) and a silver. We chose two (non-sanded, because we were putting up glass tile) because they really didn't have the color of gray we were looking for. Not sure if this is common, but we did notice that to color ended up drying lighter than the color ratio we mixed it with. Perhaps this is due to the water added making it look darker?

Putting up this mesh-back tile was really easy!

Our fridge doesn't exactly fit in the space, so tiling a five square perimeter makes it look a lot better.

We agreed that facing the light switches with white face plates was a bad idea. On the other hand, getting the faceplate pictured, took forever. We think they make them special order, but that is a guess. They are expensive though, which kinda sucks, but in the end I think the look is worth it.

Still more to do, will discuss in the next post.

Enjoy!

Unknown at 5:42 AM No comments: Read More

Thursday, January 22, 2015

Cabinets

Working on the downstairs actually started with a desire to improve the cabinets... but that plan was deferred. Several months back, I purchased some crown molding for the cabinets, and even black splash tile. But the more I put thought into it, the more I realized I wanted to go the extra distance and add cabinet lighting.

I ordered LED cabinet lighting from an online source, which told me I needed to include a Magnetic Low-Voltage (MLV) transformer. I received the lights alright, but no transformer. Turns out, it was back ordered forever. Months later, after Christmas, I found the transformer on another site and low-and-behold, they had it in stock! In the mean time, though, I did all the other stuff I already talked about.

Well bored, and needing a project, I picked back up the cabinet effort. Here are my objectives:

Raise the cabinets about and 1 1/2" (Done)
Trim with bead molding (Partly Done)
Trim with cove crown molding (Partly Done)
Over cabinet lighting (To do)
Under cabinet lighting (To do)
Redo outlets and switches with Adorne Collection (To do)
Backsplash (To do)

I was successful in raising the cabinets. In fact the subtle 1.5" added height is a profound difference. It's like they can breath now. Super happy with the result, plus, the new height perfectly fits a sheet of the mosaic tile we picked out.

With the bead molding. I decided I would trim entirely around the whole cabinet. That means across the full edge of the top, down the side next to the microwave, and across the bottom. The one thing that bothered me originally was the sides of the cabinet face actually protrude past the side panel about 1/4". I saw where our neighbors builder just bent the bead trim inward, which looks half-assed. Our other neighbors had a piece of filler inserted in this space (which maybe that is the norm). Not liking any of these options, I decided to miter cut the small peices and trim around the whole profile. Wow! The result is subtle, but looks sophisticated and amazing!

A starter Hardywood collection

Ran out of bead trim at the bottom left, more on order.

Here is where we once kept our coffee maker. Less than two years you can see the damage. But fortunately it will get covered up with bead molding.

Nicely mitered corner to run down the edge, adds another nice line to follow.

You can see the back splash tile we are going to use. Might add 4" beaten copper decoratives to break it up.

Nice shot (slightly outta focus though) or the way I trimmed around the edge.

Excuse the mess, we were cooking. :)

Unknown at 5:24 PM 1 comment: Read More

Friday, December 19, 2014

Adorne Legrande

We are really trying to bring in a level of WOW to our front entrance and formal Dining Room areas. With the completion of the Sitting Room, and Wainscoting in the main hallway, we started thinking there might be a couple more ways to add some jewelry to these spaces.

First eye-soar was the heat registers. I can't believe how boring they looked, and more importantly how I didn't notice their blandness until after I started adding some trim work. I was certain they made designer heat registers, though I hadn't really looked or even thought of the concept. Well, after looking into the matter, we ended up replacing (most of) them with some satin nickel ones from Lowe's.

It was incredible the transformation this little enhancement made! But, be careful if you decide to do this yourself. Our home has a number of different sized registers. 4x10, 4x12, and 4x14. These Allen & Roth hear registers don't come in 4x14, so we are ordering the matte black ones for our Family Room.

Another enhancement we chose, was replacing the default electrical outlets, and switches with something nicer, something with more control. Shopping around I came to learn about the Legrande Adorne collection. This company makes it all, but yes, it will be $pendy! I've only replaced outlets and switches in a few locations, because the cost is too high. Maybe in time I will get to other spots.

Like the registers, replacing the outlets and switches in the Sitting Room, Dining Room & Foyer was mainly to bring another level of jewelry to these spaces. But, I also wanted functionality improvements as well.

Example... we usually leave early in the morning, and walk out the front door in darkness. This means I have to turn on the lamp light in our yard to get to the vehicle safely. When I come home, I can't help but feeling that I just wasted a whole day of electricity, since there is no way to turn off the light once I drive away. To solve this, I opted for the Adorne Sensaswitch.

I don't have the motion configured, rather we just set the number of minutes, and the lights automatically turn off.

Next to this switch, are two SoftTap switches, one for the hallway, and the other for the porch. Below are a few pics I took after installation.

Front entrance

Wireless Touch Dimmer for the Sitting Room

SoftTap switch for the Stairwell lights

Outlet with custom face plate in the Dining Room

Another option for the Adorne collection is the customizeable face plates. They add up too, but for the showy rooms, I splurged on them so the wall paint would match the face plate color. Instead of painting the insert that comes with, you can use wallpaper or whatever. We're pretty happy with the way it came out.

Enjoy!

Unknown at 11:39 AM No comments: Read More

Monday, December 1, 2014

This One is Real - Coffer Complete!

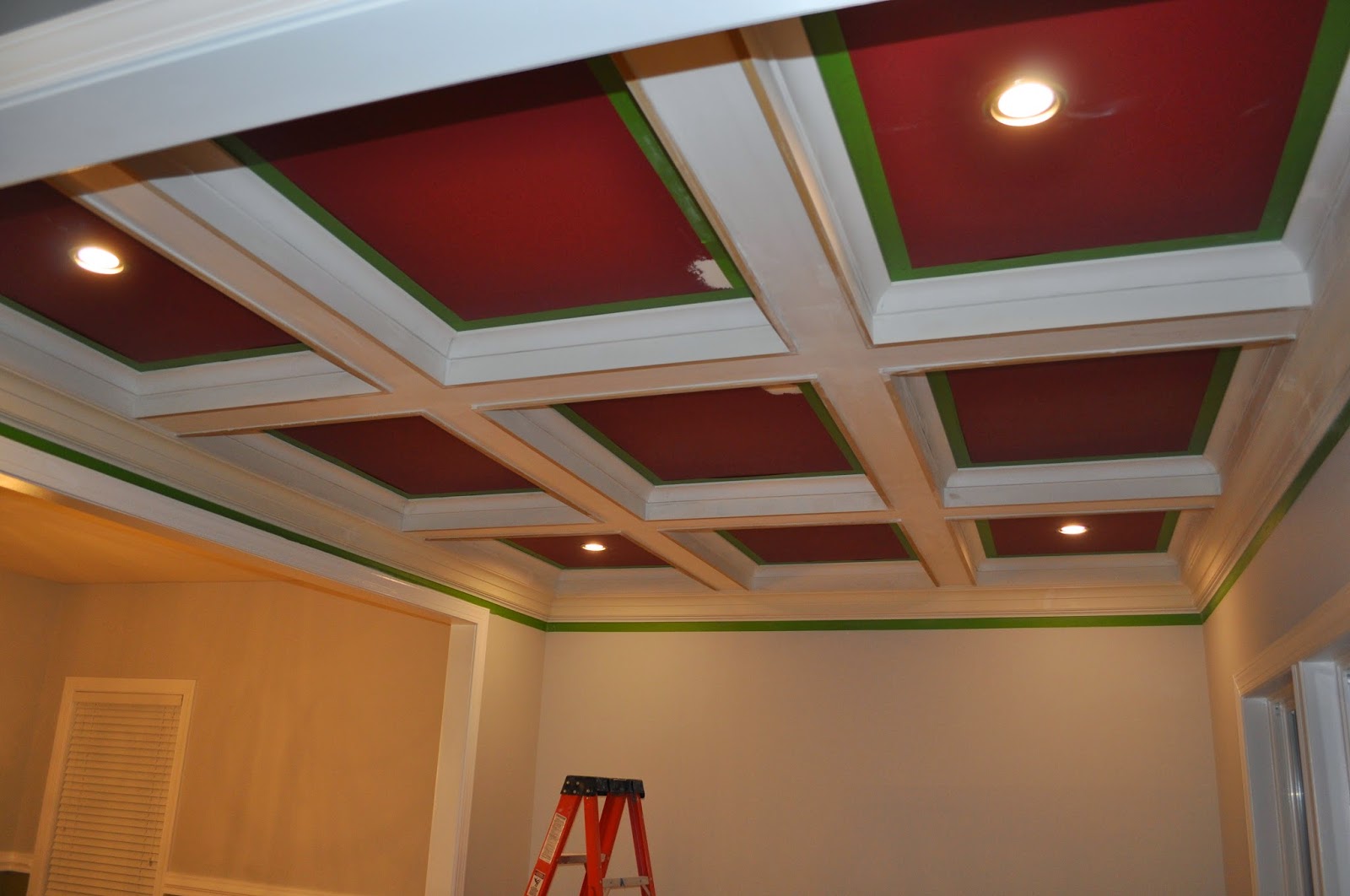

Holy smokes! Be ready for a ton of pics to show in this post. I am practically in disbelief that I was able to pull this project off. Have to say we are completely blown away with this coffered ceiling!

Here is a template of the crown build-up I planned to use.

There was actually a 2x4 stapled on to the back by my fingers, but I tore it off before taking the picture.

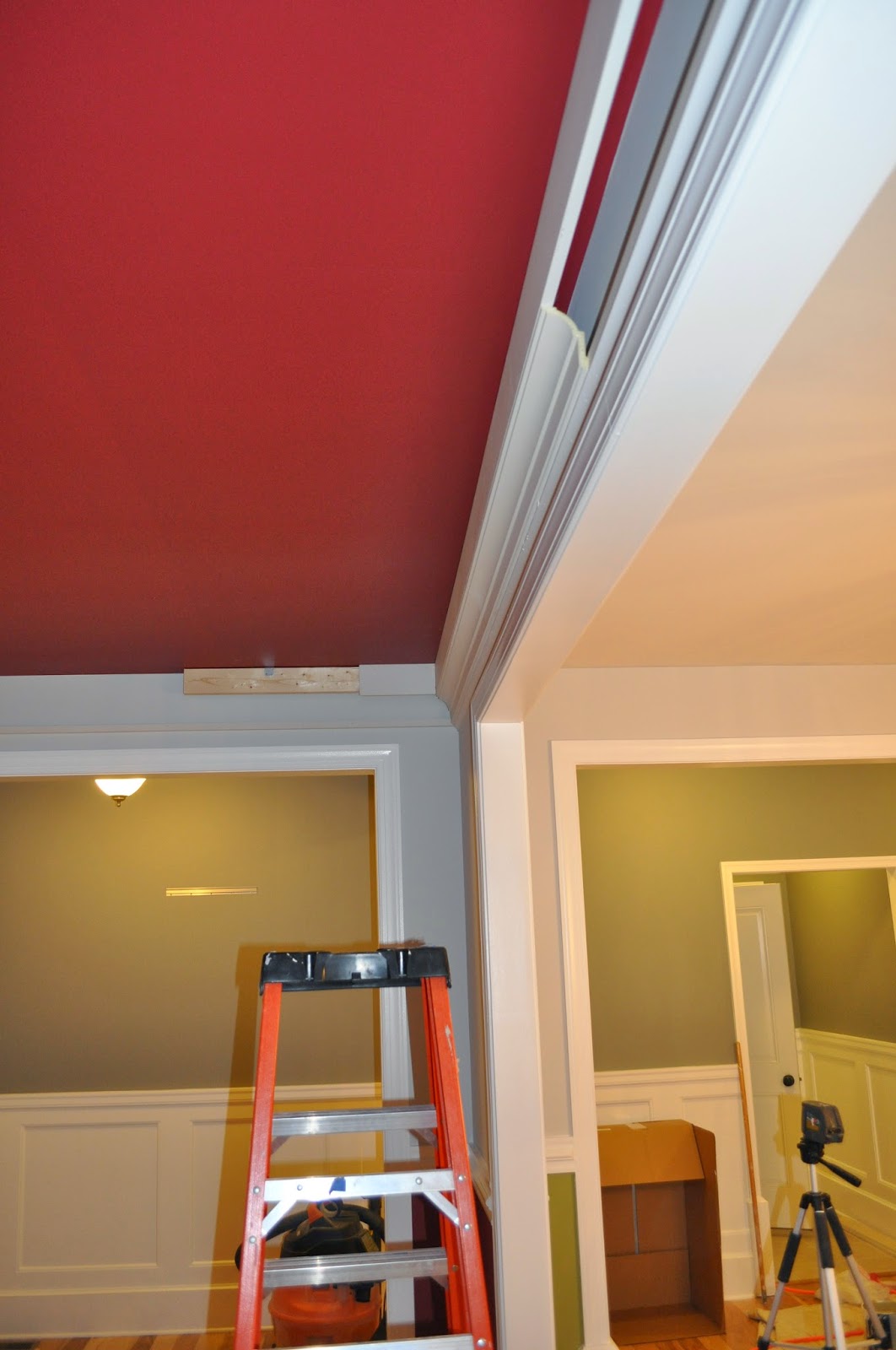

I cut 3 ft. length 2x4 studs, and used metal brackets to fix to the floor joists in the ceiling.

The vertical board is 4 7/16" width run through my table saw. It was cut from a 5.5"x12' MDF plank. The leftover piece I used as a build-up base to nail the 3/4" cove at the base of the coffer.

This is a good shot of the profile of the crown build-up. With 12' MDF planks, I could run within a couple feet to the other side of the room, and using my 18 gauge brad nailer, nail the plank into the 3 ft 2x4 on the other side.

This outlet is wired to the wall switch. I hijacked that to feed electricity to the 4" gimbal recessed lights, I planned to install above.

Using a fiberglass "fishing rod" I pulled the 2-wire down the inside of the wall from a hole I made up top (to be covered up by crown).

Here you can see the hole where the electrical wire comes out.

These are the recessed lights we chose. The have a nice brushed steel bezel, and are designed for existing installation. We got them at Lowe's.

Preparing for marking the location of the coffers.

By taping, I am able to assess where the coffers are going to go, and whether their spacing is appropriate for the room size.

I was going to just use the tape for placement of the MDF cross boxes I built, but the tape was cheap HDX stuff from Home Depot and it all fell off the ceiling by the time we got home from a short visit to some friends.

These are the cross boxes I built to support the vertical MDF planks, and the pine coffer base.

Conduit added to reduce chance of a nail penetrating the electrical wire.

Here I have my first cross box installed. I used 6 wing-nuts each box to secure to the ceiling.

Oops! Major screw up here.

Whew! All better.

First recessed light installed! I wired it up to ensure it worked with the wall switch.

Using the coffer, I could run wire to a location in the ceiling where I could pop back up between two floor joists above, in order to get to the 4" hole cut for the recessed LED light.

Now two installed!

I used a solid piece of pine for the base boards of the coffer because I thought the MDF was going to possibly sag over time, if hung horizontally (it's super flexible). Plus, pine planes down nicely to get the 5/8" thickness needed for the profile I desired.
